Features & Performance

nSMT+DIP type, 67Pin.

nModule card thickness: 0.8+/-0.08mm.

nSingle ended signaling, impedance:  85Ω

nData rate: 8GT/s +.

nTooling type:  :KEY B， KEY E，KEY M

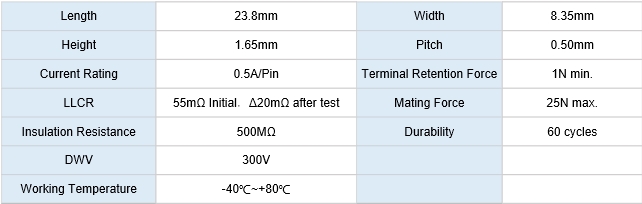

Product Specifications

Product Catalog

Product Drawings

NGFF 1.65H CH0.6mm KEY M RVS GEN3 0.5A

40-42547-067BXRHF_NGFF 1.65H CH0.6mm KEY M RVS GEN3 0.5A_Rev A.PDF

NGFF 1.65H  CH0.6mm KEY E RVS GEN3 0.5A

40-42547-0674XRHF_NGFF 1.65H  CH0.6mm KEY E RVS GEN3 0.5A_Rev B.pdf

Find more detail please contact  : connsales@deren.com
